By Timebeat

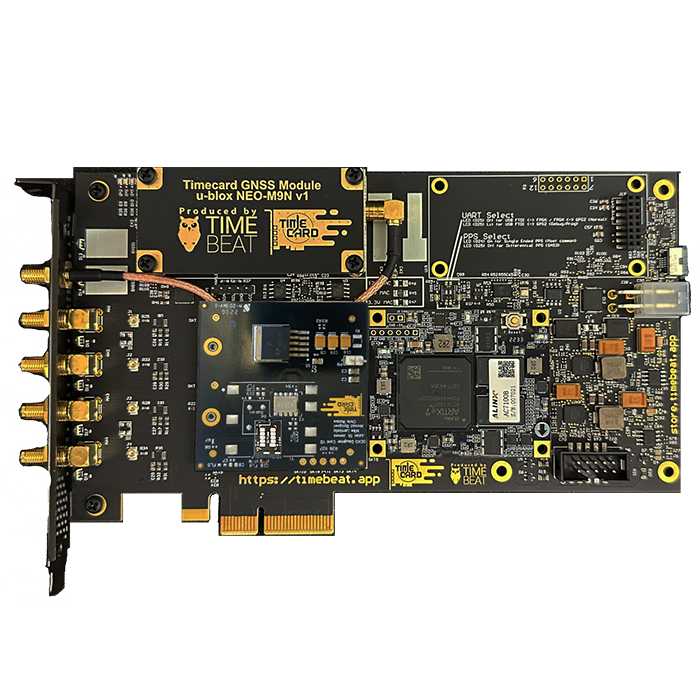

OCP-TAP Timecard Lite edition (Production Ready Technology)

Extended Warranty: 3-year manufacture warranty
Support: 1 Year support
Upgrade: Additional GNSS Unit and Rakon ROD2522S2 bundle
Regular price £3,398.00
Regular price Sale price £3,398.00
Availability: In stock
Regular price £3,398.00
Regular price Sale price £3,398.00

Introducing the OCP-TAP TimeCard Lite Edition featuring the SiTime SiT5501 MEMS oscillator:

  • Dynamic Stability: With unparalleled stability under conditions like airflow and thermal shock, it ensures reliable performance.

  • Temperature Stability: Maintaining ±10 ppb stability over a broad temperature range from -40°C to 105°C, it delivers consistent precision.

  • Frequency Slope: Exhibiting a typical frequency slope of ±0.3 ppb/°C (ΔF/ΔT), it remains steadfast in the face of temperature variations.

  • ADEV Performance: Boasting an impressive 1.5e-11 ADEV at a 10-second averaging time, it achieves impeccable timekeeping.

  • Digital Frequency Control: Offering digital frequency control with a range of up to ±3200 ppm, it adapts to specific synchronisation needs.

  • Steady Operation: Ensuring uninterrupted operation without activity dips or micro jumps, it guarantees a seamless experience.

  • Robust Construction: Built to withstand shock, vibration, and board bending, it excels in demanding environments.

  • Integrated Regulators: On-chip regulators eliminate the need for external LDOs, simplifying the setup.

  • Supply Voltage Options: With supply voltage options including 2.5V, 2.8V, 3.0V, and 3.3V, it accommodates diverse power requirements.

  • Output Choices: Offering flexibility with LVCMOS or clipped sinewave output options, it suits various synchronisation needs.

  • Compliance: Compliant with RoHS and REACH standards, it adheres to environmental regulations.

  • Eco-Friendly: Manufactured with a commitment to sustainability, it is Pb-free, Halogen-free, and Antimony-free.

  • Compact Design: Housed in a compact 7.0 mm x 5.0 mm ceramic package, it combines precision with space efficiency.

◼ Best dynamic stability under airflow, thermal shock
▪ ±10 ppb stability over temperature
▪ -40°C to 105°C operating temperature range
▪ ±0.3 ppb/°C typical frequency slope (ΔF/ΔT)
▪ 1.5e-11 ADEV at 10 second averaging time
◼ Digital frequency control up to ±3200 ppm
◼ No activity dips or micro jumps
◼ Resistant to shock, vibration and board bending
◼ On-chip regulators eliminate external LDOs
◼ 2.5 V, 2.8 V, 3.0 V and 3.3 V supply voltage
◼ LVCMOS or clipped sinewave output
◼ RoHS and REACH compliant
◼ Pb-free, Halogen-free, Antimony-free
◼ 7.0 mm x 5.0 mm ceramic package
