Open Timecard Mini - Precision Timing module is a compact PTP grandmaster clock with <5ns UTC accuracy, 1.5us/8hrs holdover, and multi-band GNSS. Supporting IEEE 1588 (PTP), NTP, and SyncE protocol, it ensures precise frequency sync and reliable timing.

Why Precision Timing Module?

  • <5ns Timing Accuracy

    Delivers <5ns precision using u-blox LEA-F9T GNSS and ±1 ppb stability from oscillator, ensuring exact timing for 5G networks, financial trading, and scientific instruments.

  • 1.5μs/8Hrs Holdover Stability Without GNSS

    If GNSS signal is lost, the OCXO maintains 1.5 microseconds of drift over 8 hours, matching telecom standards for backup timing in data centers and power grids.

  • Support multi-satellite systems

    The 184-channel u-blox F9 engine locks onto multiple satellite systems (L1/L2/L5 bands), with 26-second cold starts and 1-second reacquisition, ensuring reliability in remote or obstructed areas.

  • Adjustable Frequency

    On boarded clock generator allows sub-picosecond tuning, while the OCXO supports 1 ppt adjustments, critical for quantum computing, radar, and lab equipment requiring exact frequency control.

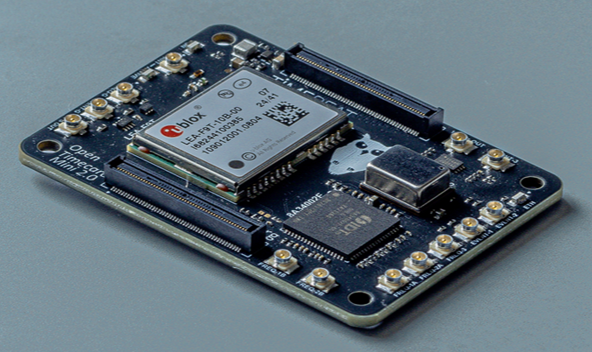

What's inside the Precision Timing Module?

Get your Precision Timing module

By timebeat.app

Open Timecard Mini - Precision Timing

£799.95
£799.95
Availability: 12 in stock
Additional information:
This is the Precision Timing module only, for the full solution, please visit Open Timecard Mini page
£799.95
£799.95

What you'll need to make it even better

Product Specification

General Features

1x ANT: u.fl IPEX-1 connector for connecting GNSS antenna input.

4x PPS OUT: u.fl IPEX-1 connectors

1x PPS IN : u.fl IPEX-1 connector

3 x EVENT IN/OUT : u.fl IPEX-1 connectors

200 Pin top: Direct connection for the Raspberry Pi CM4 footprint

Ublox LEA-F9T

GNSS Features

184-channel U-blox F9 engine:

- GPS L1C/A, L2C, L5 GLO L1OF GAL E1B/C, E5b, E5a BDS B1I, B1C, B2a QZSS L1C/A, L2C, L5 NavIC L5 SBAS L1C/A: WAAS, EGNOS, MSAS, GAGAN* Frequency Bands: L1 and L2

- Position Accuracy: 1.5 m CEP

- Timing Accuracy (1 PPS): <5ns (typical)

Time-to-First-Fix (TTFF):

- Cold Start: 26 seconds

- Reacquisition: 1 second

SiT5812 1.5us/24h mems OCXO

Frequency Stability: Down to ±1 ppb (parts per billion) over temperature

Frequency Tuning

- Supports fine frequency adjustments in steps as low as 1 ppt (parts per trillion)

- Digital control for precise frequency tuning and correction

Aging Stability

- ±0.1 ppb/day

Performance

Holdover and Retrace

- 1.5us/8hrs holdover

Temperature-Compensated MEMS

- MEMS technology with built-in temperature compensation for high accuracy across temperature ranges

- Stratum 3e Holdover: Supports holdover mode for telecom and network applications to meet Stratum 3e timing requirements


Renesas 8A34002E clock generator

Frequency and Output

•⁠  ⁠Output Frequency Range: 0.5 Hz to 1GHz (on request 1Hz default)

•⁠  ⁠Number of Outputs: Up to 7 programmable outputs (on request 1Hz default)

Frequency Tuning and Accuracy

•⁠  ⁠Tuning Resolution: below 1ps
