By timebeat.app

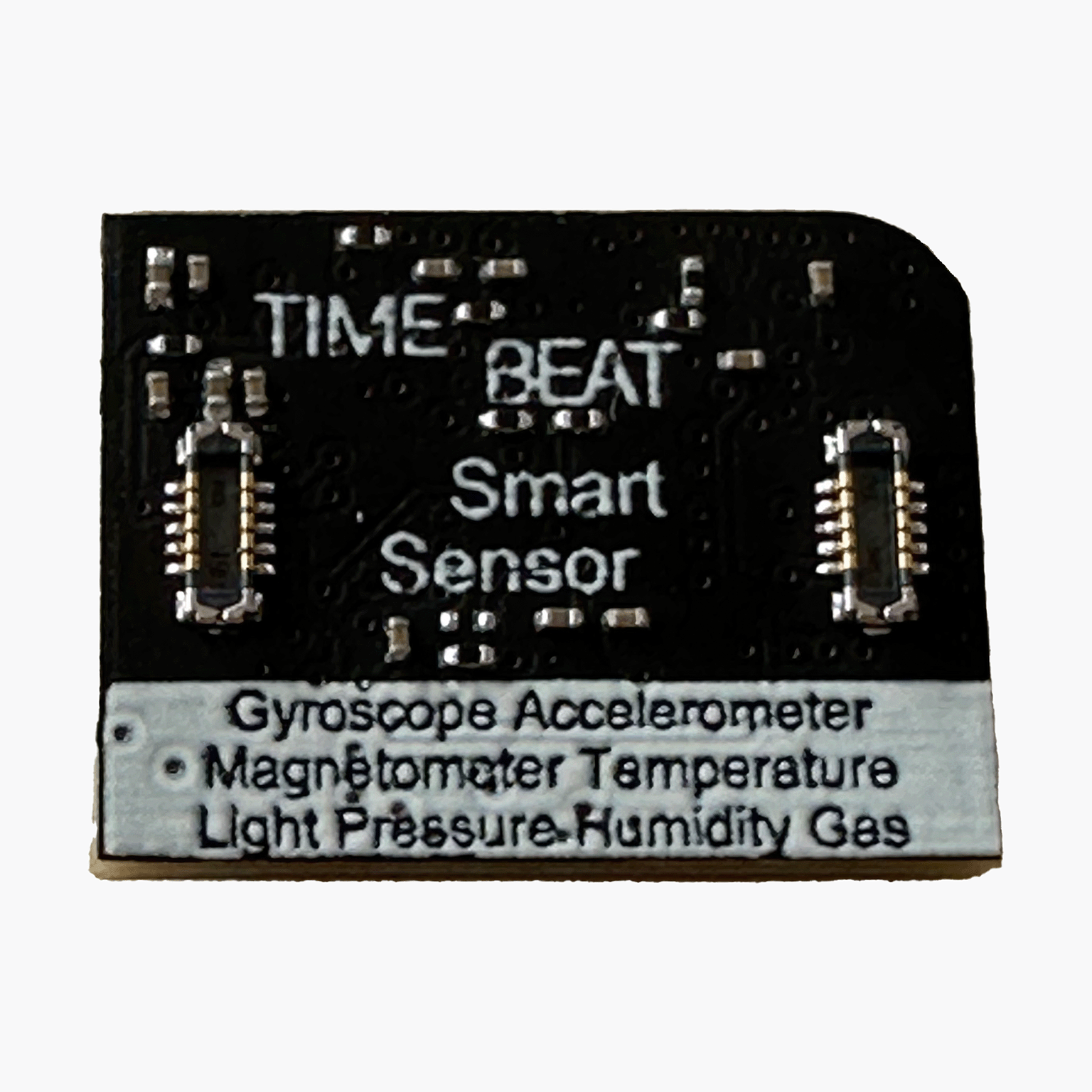

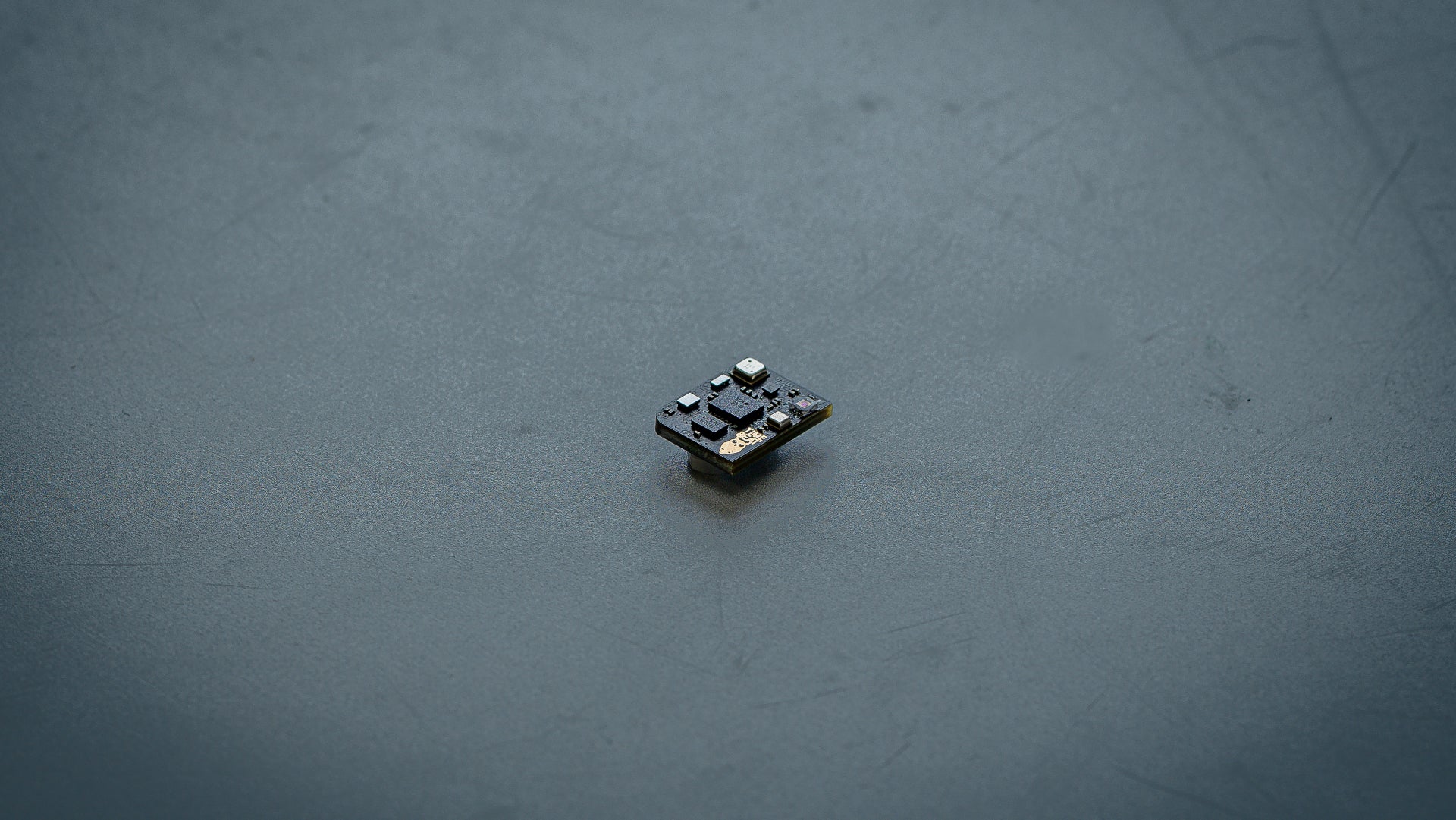

AI Smart Sensor module - Gyroscope, Accelerometer, Magnetometer, Temperature, Pressure, Humidity, Gas & Light

Regular price $187.00
Regular price $231.00 Sale price $187.00
-$44.00
Availability: 84 in stock
SKU: EXP-MOD-SMS
Regular price $187.00
Regular price $231.00 Sale price $187.00

This smart sensor expansion module uses self-learning AI and includes a 32-bit microcontroller, 6-axis IMU, pressure, humidity, and temperature sensors, a gas sensor that can detect VOCs, VSCs, and other gases, and even a digital ambient light sensor. With the BME AI Studio software, users can develop a variety of powerful functionalities with the BME688 and BMM350 sensors.

1) BHI260AP is a self-learning AI smart sensor with integrated IMU including :
- A 32-bit programmable independent microcontroller with flash memory and open-source firmware
- A 6-axis IMU (based on MEMS technology) with
- 3-axis gyroscope
- 3-axis accelerometer

Complete SDK available. Quick introduction here

See more here

2) BME688 also has self-learning AI and a range of sensors including :
- Pressure sensor: 300-1000 hPa
- Humidity sensor: 0-100%
- Temperature sensor: -40 - 85c
- Gas sensor (this is so cool) which can detect among other things Volatile Organic Compounds (VOCs), volatile sulfur compounds (VSCs), and other gases such as hydrogen, carbon monoxide, acetone, ethanol, ethane, and isoprene in the parts-per-billion (ppb) range.

Lots of cool functionality can be developed with the BME AI studio software here

See more here

3) BMM350 is a state-of-the-art magnetometer based on innovative tunnel magnetoresistance technology and includes a unique field shock recovery feature.

See more here

4) APDS-9306-065 is a Digital Ambient Light Sensor

- Utilises Coating Technology to Emulate Human Eye Spectral Response
- High Sensitivity in Low Lux Condition ‚Äď Ideally Suited for Operation Behind Dark Glass
- Wide Dynamic Range 18,000,000 : 1
- Low Lux Performance 0.01 lux
- Up to 20-Bit Resolution

See more here

5) The BMP581 is the new benchmark in the field of barometric pressure sensors and impresses with its enormous accuracy. This enables endless and new use cases such as fitness tracking where accurate altitude change is key. The low power and low noise 24 bit absolute barometric pressure sensor significantly improved its accuracy compared to previous generations at smallest size. It offers outstanding design flexibility, providing a single package solution that customers can easily integrate into a multitude of existing and upcoming devices such as GPS modules, wearables, hearables, smart home, IoT and industrial products.

See more here


See product description
