OPEN TIMECARD MINI 2.0

The high-performance PTP and NTP Grandmaster Clock in a small and compact form factor, provides robust and accurate time synchronisation and distribution. This second generation of the Open Timecard Mini ecosystem provides multi-band GNSS receivers with proven performance, up to 5ns accuracy to UTC and 5 ppb holdover capability.

No customization has been created for this 3D model.

You can create a customization now by clicking here

(Don't worry! Your customers will not see this error message on your store store.timebeat.app.)

LOADING 3D CONFIGURATOR

3D Configurator

Customize

Product Specification

General Feature

  • <5ns Timing accuracy
  • 1.5μs/8Hrs Holdover Stability Without GNSS
  • Exchanging correction data with nearby GNSS timing receiver
  • Sub-picosecond tuning, support 1ppt adjustment


PTP Profile

  • Default & Enterprise-Draft (E2E & P2P)
  • IEC 61850-9-3 Utility Profile
  • IEEE C37.238-2017 (& 2011) Power Profile
  • ITU-T G.8265.1 (/2) & G.8275.1(/2) Telecom Profile
  • SMPTE 2059-2 Profile
  • AES67/RAVENNA Profile

Time Source

Supports GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC across L1/L2/L5 bands

Accuracy Level

Up to 5ns of time pulse signal

Time Pulse Jitter

Up to ±4 ns

Stability

±0.5 ppm stability from -55°C to 105°C

General Feature

  • ≤10ns Timing accuracy
  • High performance in challenging IoT environment
  • Concurrent reception of multiple dual frequency GNSS constellations
  • Built-in GNSS security for highest robustness against attacks


PTP Profile

  • Default & Enterprise-Draft (E2E & P2P)
  • IEC 61850-9-3 Utility Profile
  • IEEE C37.238-2017 (& 2011) Power Profile
  • ITU-T G.8265.1 (/2) & G.8275.1(/2) Telecom Profile
  • SMPTE 2059-2 Profile
  • AES67/RAVENNA Profile

Time Source

Supports GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC across L1/L2/L5 bands


Accuracy Level

Up to 10ns of time pulse signal


Time Pulse Jitter

Up to ±8 ns


Stability

±1 ppb stability within -40°C to 85°C

General Feature

  • 30ns Timing accuracy
  • Concurrent reception of multiple dual frequency GNSS constellations
  • Automatic best GNSS signal selection in L1 & L5 band
  • Single-band operation is not supported


PTP Profile

  • Default & Enterprise-Draft (E2E & P2P)
  • IEC 61850-9-3 Utility Profile
  • IEEE C37.238-2017 (& 2011) Power Profile
  • ITU-T G.8265.1 (/2) & G.8275.1(/2) Telecom Profile
  • SMPTE 2059-2 Profile
  • AES67/RAVENNA Profile

Time Source

Supports GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC across L1/L5 bands

Accuracy Level

Up to 30ns of time pulse signal

Time Pulse Jitter

Up to ±30 ns

Stability

N/A

General Feature

  • 30ns Timing accuracy
  • Precise navigation and automation
  • Real Time Kinematic (RTK) 0.01 m + 1 ppm CEP (Circular Error Probable)
  • Desired L-band GNSS correction service
  • Point Perfect compatible


PTP Profile

  • Default & Enterprise-Draft (E2E & P2P)
  • IEC 61850-9-3 Utility Profile
  • IEEE C37.238-2017 (& 2011) Power Profile
  • ITU-T G.8265.1 (/2) & G.8275.1(/2) Telecom Profile
  • SMPTE 2059-2 Profile
  • AES67/RAVENNA Profile

Time Source

Supports GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC across L1/L2/L5 bands

Accuracy Level

Up to 30ns of time pulse signal

Time Pulse Jitter

Up to ±4 ns


Stability

1 cm + 1 ppm CEP within -40°C to 85°C

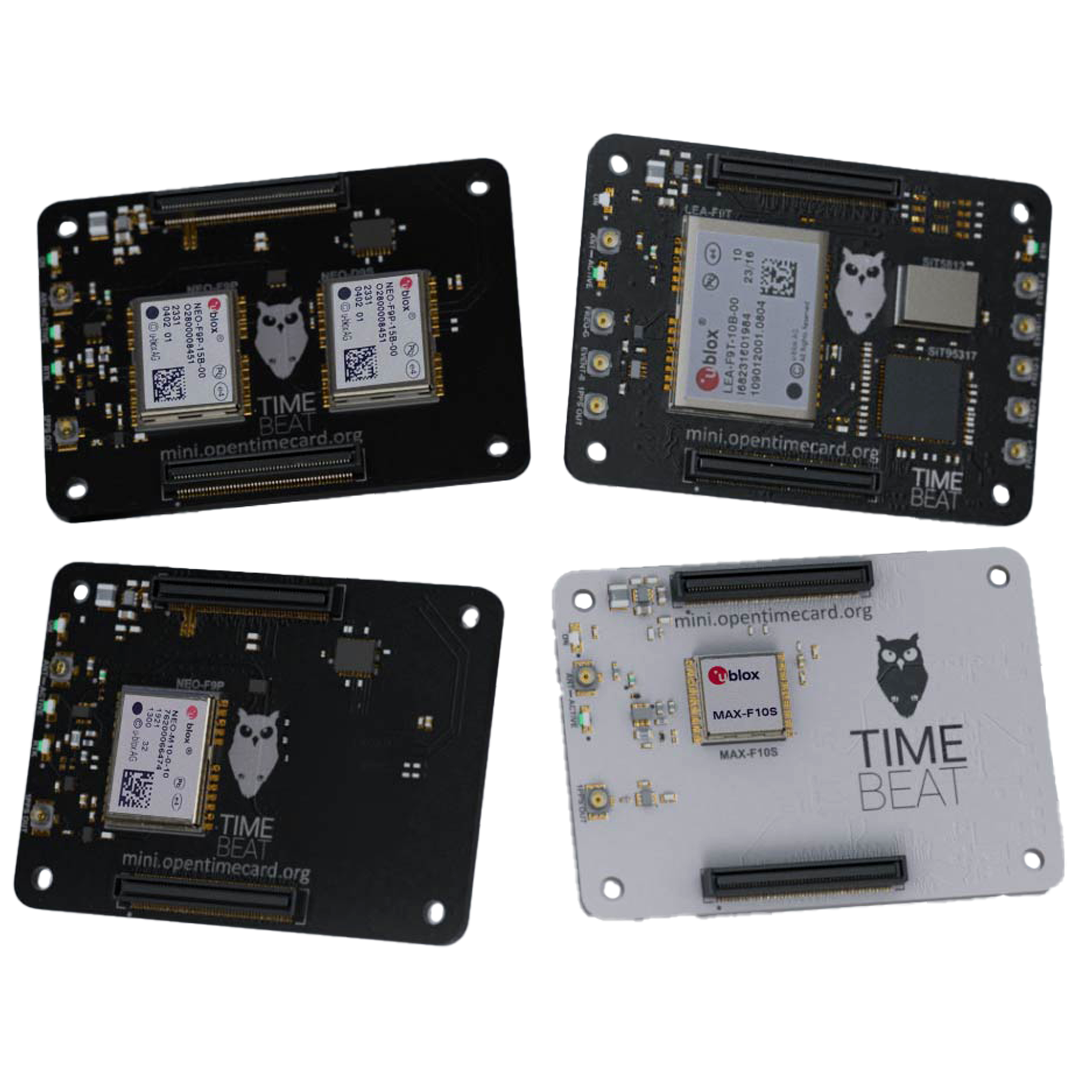

Open Timecard Mini 2.0 Ecosystem

1
Open Timecard Mini - Precision Timing Lite
Open Timecard Mini - Precision Timing Lite
£285.95
£285.95
View full details
2
Open Timecard Mini - Precision Location
Open Timecard Mini - Precision Location
£338.36
£375.95 £338.36
View full details
3
Open Timecard Mini - Precision Timing
Open Timecard Mini - Precision Timing
£799.95
£799.95
View full details
4
Open Timecard Mini - Essential
Open Timecard Mini - Essential
£75.95
£75.95
View full details

Why Open Timecard Mini 2.0?

  • Multi-PTP profiles supported

    • Default & Enterprise-Draft (E2E and P2P)
    • IEC 61850-9-3 Utility Profile
    • IEEE C37.238-2017 (& 2011) Power Profile
    • ITU-T G.8265.1 (/2) Telecom Profile
    • ITU-T G.8275.1(/2) Telecom Profile
    • SMPTE 2059-2 Profile
    • AES67/RAVENNA Profile and more...

  • Customise-to-Precision Demand

    From high-precision timing for PTP/NTP Grandmaster clock solutions, to high-precision location services for Industrial IoT and Automotive, the new mini 2.0 range has what you need

  • Multi-Reference Time Sources

    Our GPS/GNSS engine supports GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC across L1/L2/L5 bands, ensuring reliable synchronisation anywhere. A cold start in just 26 seconds and 1-second reacquisition, downtime is minimised

  • Compact PCIe form factor

    The 11.5cm x 7cm PCIe IO form factor makes it easy to integrate into your existing device such as PCs or servers, simplifying your workspace. Available with both half-height and full-height bracket.

How to Set Up Your Timebeat Timecard Mini

Still want our support?

Time honoured solutions built around you

  • Tech to suit your project

  • Every unit tested

  • Top performance

  • Free Software Available
